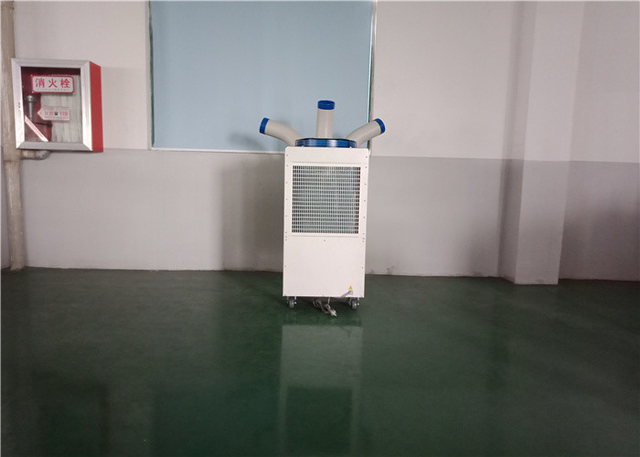

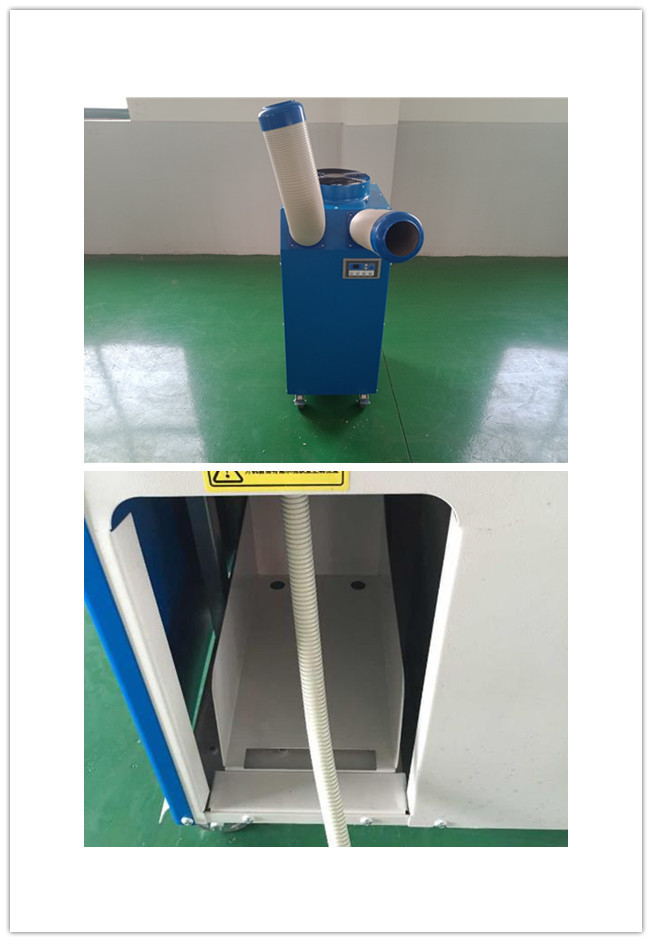

6500W Spot Cooling Units, Industrial Portable Cooler 22000BTU
Brief introduction
The WX65 is the most powerful of the Spot Coolers. They are a Portable Refrigerated Air Conditioner which are available for both hire and sale. The WX65 features an intelligent control system, two speed fan, temperature control, condensation pump options, a 24hr timer and provides direct cold air to your designated area.
Meanwhile, spot air rental system includes everything needed for a single point cooling station that offers a low cost, reliable, maintenance free solution to a variety of industrial spot cooling problems. With the turn of a knob , you can select a precise and comfortable temperature in the room. simply roll it in, plug it in, turn it on and set the desired temperature. That’s it !
Safety Device
1.Internally insulated with fiberglass insulation
2. Thermostatic control with multi-speed fan
3. Heavy duty twin wheel lockable casters for portability
4. Power cord with arc fault protection
5. Condensate jug with overflow protection
APPLICATION
1. Manufacturing industry: textile industry, machinery manufacturing, ceramic manufacturing, chemical plants, metallurgical plants, hardware and tanneries
2. Processing Industry: Gold Plating, Electronics, Footwear, Rubber Garment Factory, Food Packaging
3. Social places: Internet cafes, schools, hospitals, restaurants, kitchens, living rooms, bakeries, waiting rooms, supermarkets, vegetable markets, toilets and other public places, or golf courses, flower cultivation bases, greenhouses, etc.
4. As an air conditioning station, assisted cooling of office personnel and warehouse personnel
5. Cool down the electronic control components and cabinets to increase the working efficiency of the equipment and prolong its service life
6. For outdoor sports and recreational cooling, such as golf courses, outdoor swimming pools, barbecue sites, etc.
7. Cool down kitchen personnel to avoid heat stroke
ADVANTAGES
1. This product does not need to be installed. After receiving the goods, it can be used by directly plugging in the power supply, and we are a professional factory direct sales. We have professional technical personnel responsible for after-sales service protection.
2. The use of Panasonic rotor type hermetic compressor has the advantages of high efficiency, stability and energy saving, longer service life, faster cooling speed and higher efficiency
3. One-piece design, plug and play, free to move
4. With double protection function, high temperature protection and high pressure protection, more safe and efficient
5. The machine has better applicability and can work continuously in a high temperature environment of 45°C
6. The cold air duct swings freely, equipped with a bendable rigid pipe, adjustable angle base, and easy precise cooling
7.Compressor refrigeration, with the function of dehumidification, will not make the room produce moisture, achieve a dual purpose
New innovation
Cooling Setup: Bring timely & quickly cooling to building occupants when the central HVAC system is turned off.
Heating Setup: Portable heat pump combines both cooling and heating capabilities in a single, self-contained unit, it offers significantly higher performance, along with the usual high levels of Weixuan quality and reliability.
Dehumidifying Setup: Effective water-damage restoration begins with Weixuan . Dry rooms out quickly to reduce the formation of mold and mildew, and keep them from spreading further. A Weixuan portable unit ensures substantially faster recovery than with fans or dehumidifiers, reducing restoration costs.
Technical data
| Capacity Data |
Cooling Capacity (BTU/HR) |
22,000 |
|---|
| |
Cooling Test Conditions (F) |
95 DB/83 WB |
|---|
| Electrical Data |
Voltage/Phase/Hertz |
220/1/50 |
|---|
| |
Amperage |
8.4 |
|---|
| Refrigerant |
Type |
R410A |
|---|
| Unit Dimensions |
Height (MM) |
1100 |
|---|
| Weight |
Net Weight (KG) |
100 |
|---|
| |
Shipping Weight (KG) |
120 |
|---|
| Condensate Tank |
Capacity (L) |
14 |
|---|
Assembly
1. Top fan exhaust flange
2. Display / Control board
3. Evaporator / filter
4. Guide bar for condensate water tank
5. Little Drain: Up-to-date structure integrated with heat exchanger Significant
6. decrease in drain
7. Snug to wall: Can be placed close to the wall on three sides.
8. Air filter: Easy-to-clean air filter.
9. Durable filter: Large surface area, with no necessary to be frequently maintained.
10. Built-in auto swing mechanism: An auto swing mechanism is built in the unit.
FAQ
1. Are you manufacturer or trade company?
We are professional manufacturers and have done this business for many years.We have a big factory, which is in Shanghai. Welcome to visit our factory any time.
2. What is your main products?
We mainly produce Spot Air Cooler, Portable Air Coolers, Industrial Spot Coolers Commercial Spot Coolers, etc.
3. Can you customize multiple size products ?
Yes,we have special technology and know-how technology, which can produce as customers' requirements.
4. Any Certificates?
We passed CE,ISO,etc.
5. What is your delivery time?
We can make prompt delivery for products in stock. As for customized products or large quantity products, our delivery time is normally 5-8 working days or as your requirement.
